TBR Tire

China tire

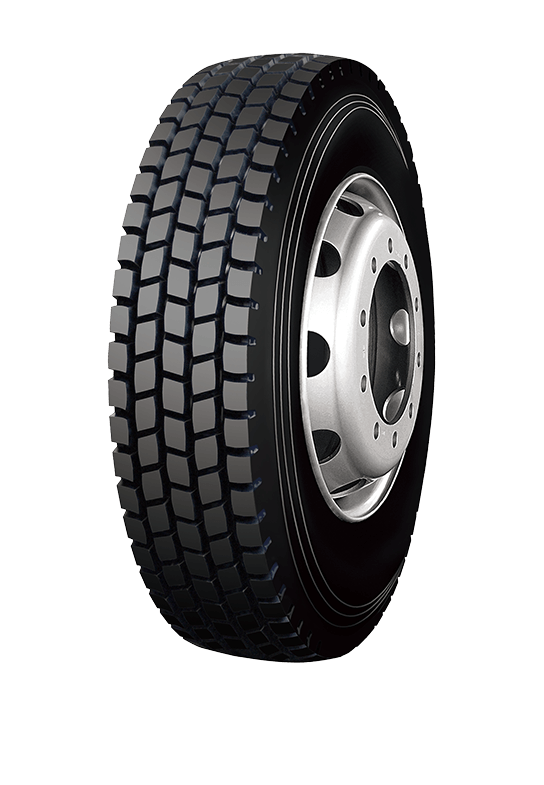

511

Comprehensive performance formula design, can provide excellent wear resistance, tear resistance and low heat generation performance.

Highway pattern, suitable for highway, general road, urban and rural highway.

Sizes and Specs

ALL size 16" 20" 22.5"

Wheel Dia.	Tire Size	Load index&Speed Symbols	L.R	Tread Depth (mm)	Inflated Dimensions		Rim
Wheel Dia.	Tire Size	Load index&Speed Symbols	L.R	Tread Depth (mm)	Overall Dia.(mm)	Overall Width(mm)	Rim
16	7.00R16LT(TL-TB)	118/114J	14	13.5	800	214	5.50F
20	10.00R20	149/146K	18	18	1054	278	7.5
	11.00R20	152/149K	18	20	1085	293	8
	12.00R20	154/151K	18	20	1125	315	8.5
22.5	295/80R22.5（w)	152/149K	18	22	1044	298	9
22.5	315/80R22.5（W）	156/150K	20	22	1076	312	9

Wheel Dia.	Tire Size	Load index&Speed Symbols	L.R	Tread Depth (mm)	Inflated Dimensions		Rim
Wheel Dia.	Tire Size	Load index&Speed Symbols	L.R	Tread Depth (mm)	Overall Dia.(mm)	Overall Width(mm)	Rim
16	7.00R16LT(TL-TB)	118/114J	14	13.5	800	214	5.50F

Wheel Dia.	Tire Size	Load index&Speed Symbols	L.R	Tread Depth (mm)	Inflated Dimensions		Rim
Wheel Dia.	Tire Size	Load index&Speed Symbols	L.R	Tread Depth (mm)	Overall Dia.(mm)	Overall Width(mm)	Rim
20	10.00R20	149/146K	18	18	1054	278	7.5
	11.00R20	152/149K	18	20	1085	293	8
	12.00R20	154/151K	18	20	1125	315	8.5

Wheel Dia.	Tire Size	Load index&Speed Symbols	L.R	Tread Depth (mm)	Inflated Dimensions		Rim
Wheel Dia.	Tire Size	Load index&Speed Symbols	L.R	Tread Depth (mm)	Overall Dia.(mm)	Overall Width(mm)	Rim
22.5	295/80R22.5（w)	152/149K	18	22	1044	298	9
22.5	315/80R22.5（W）	156/150K	20	22	1076	312	9
